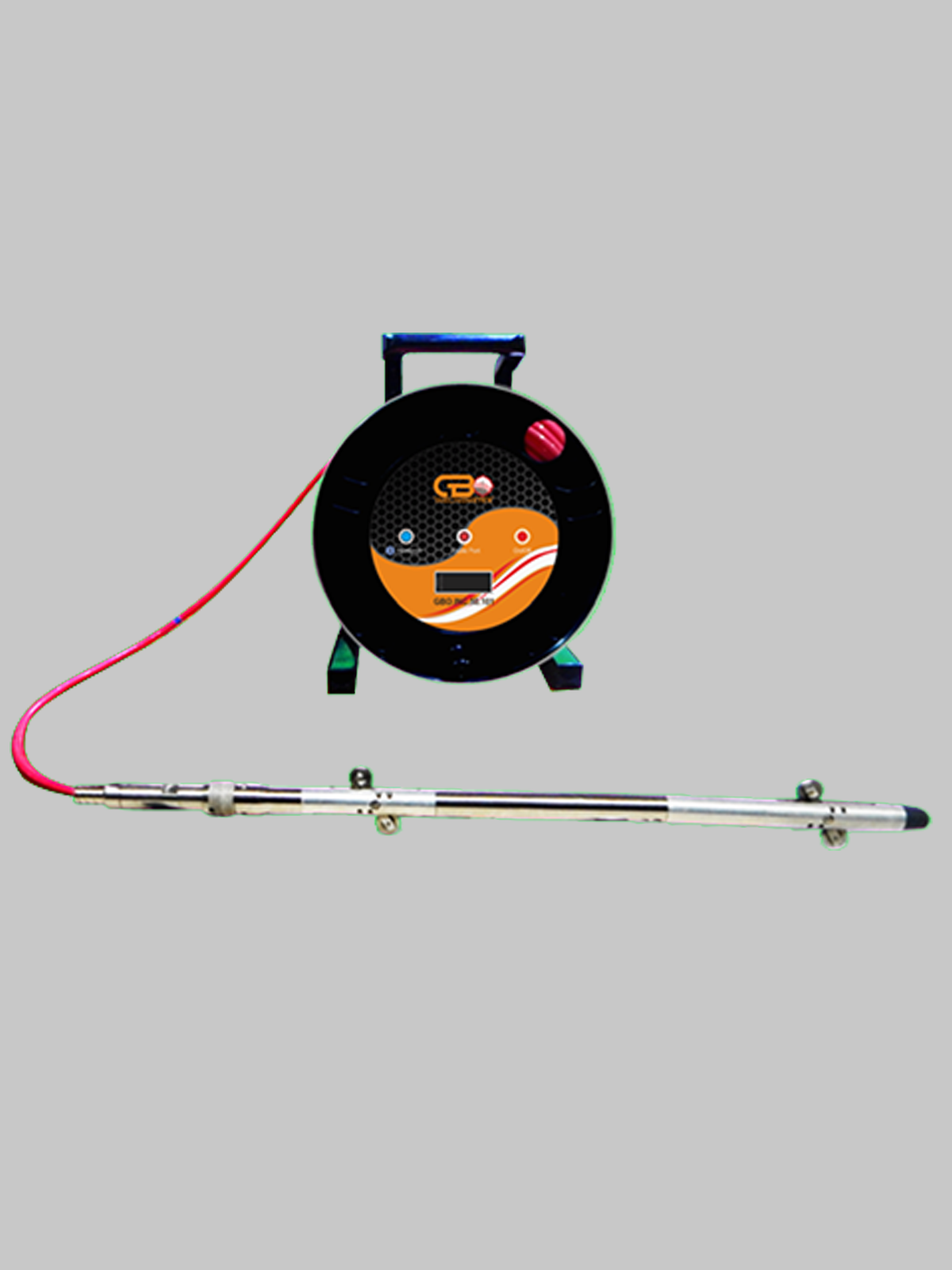

VERTICAL DIGITAL INCLINOMETER SYSTEM GBO Digital Inclinometer is used to measure lateral deflections within a borehole. The system comprises a biaxial probe, cable reel and field PC. The probe incorporetes MEMS technology allowing highly accurate and repeatble readings, transfered via a digital signal. Bluetooth communications enables a cable free data transmitting system with no connectors to corrode or break.

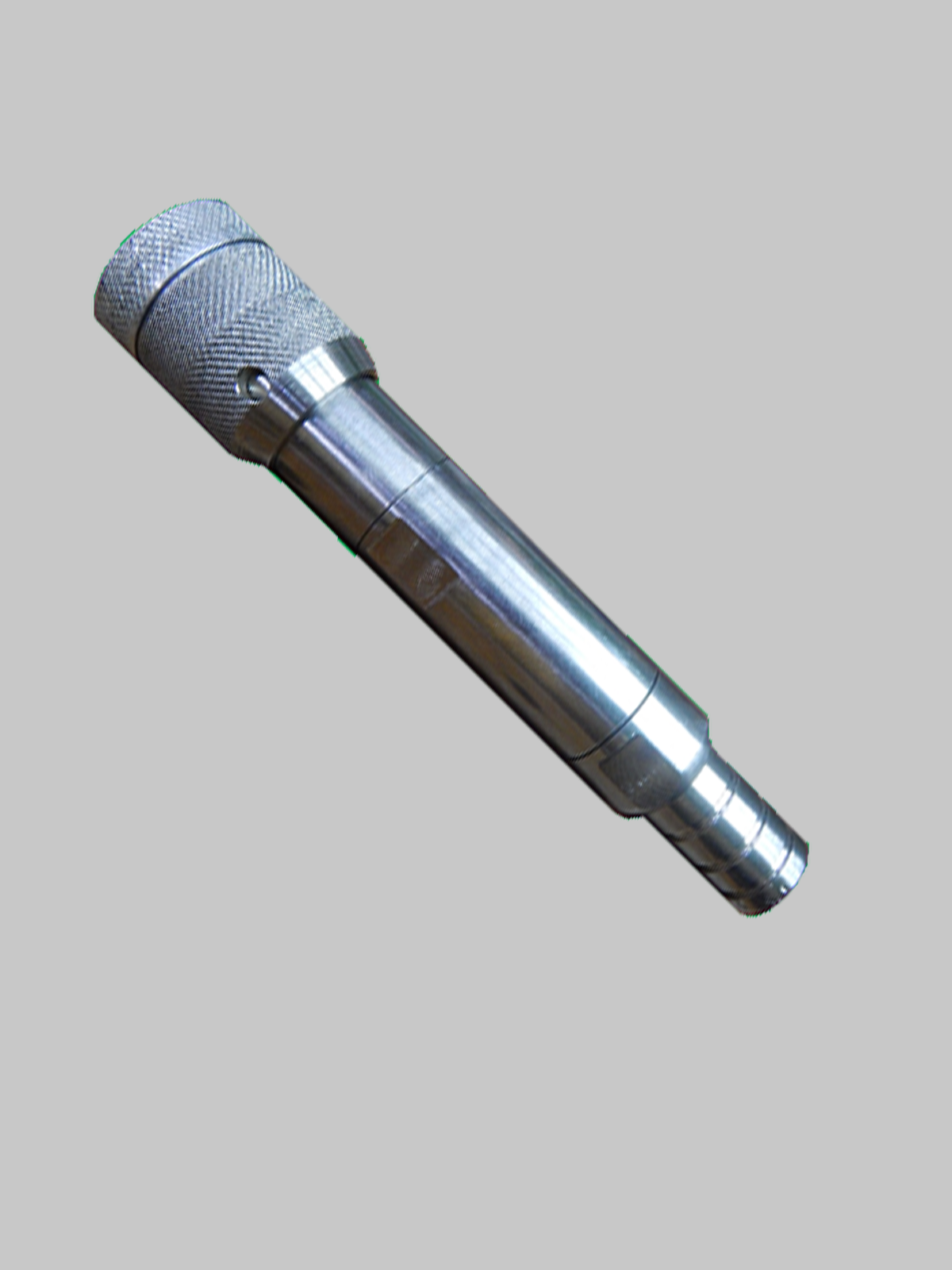

Probe
|
: |
968 mm |
|
: |
34 mm |
|
: |
± 45 degree |
|
: |
± 0.1 mm |
|
: |
± 0.1 mm per 25 m |
|
: |
± 0.01%FS |
|
: |
55 mm |
|
: |
88 mm |
Cable
|
: | PVC mixed insulation material |
|
: | Transparant PU sheath |

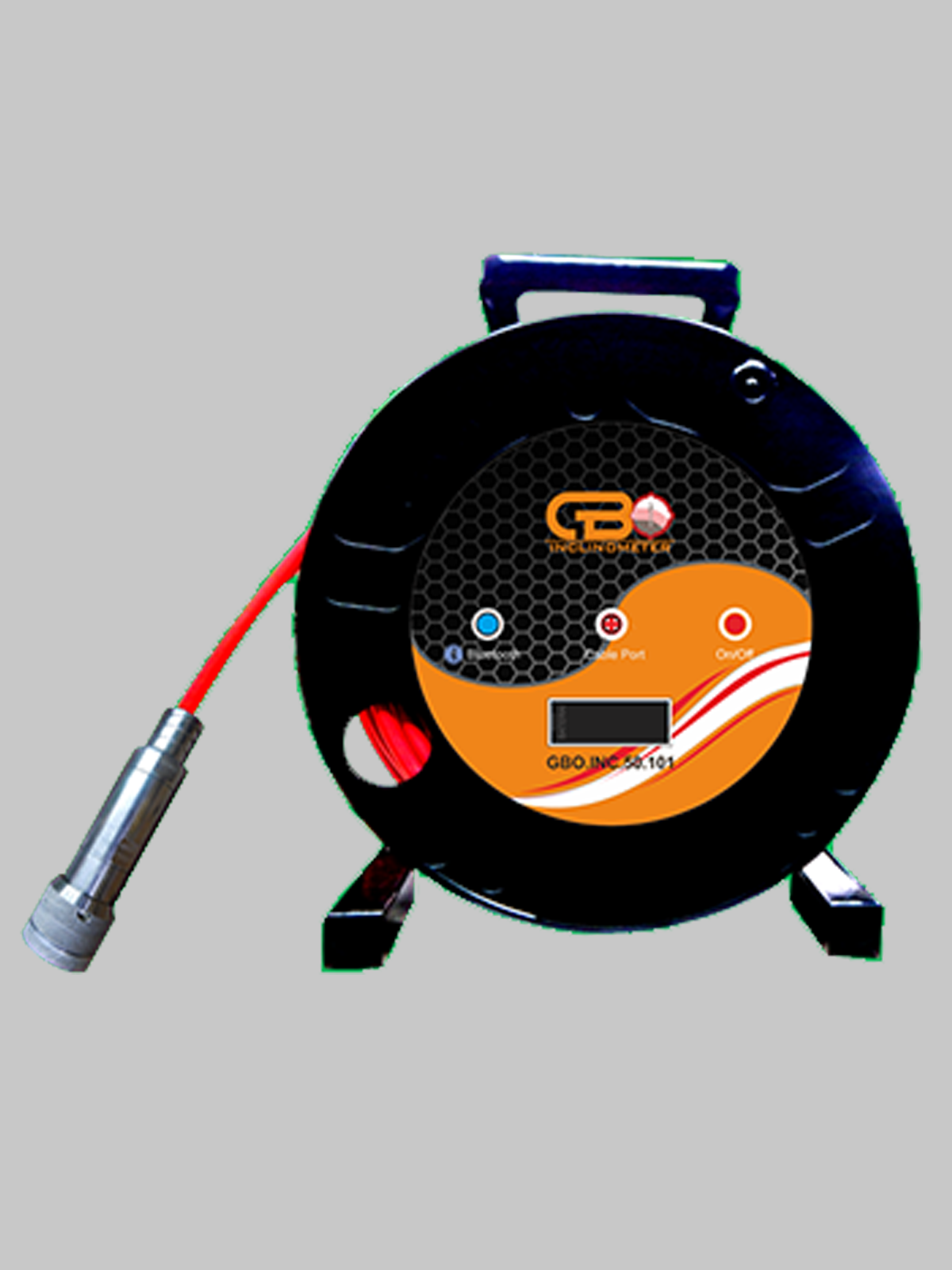

Cable Reel
|
: | 30 m | 50 m | 100 m |
|
: | 5,1 kg |8,3 kg | 14,6 kg |
• Accurate and precise measurements using MEMS sensors
• Precision sprung wheel assemblies
• Bluetooth connection between cable reel and field PC
• Repeatable depth control using markers and cable gate system
• Easy transfer and capture of data
